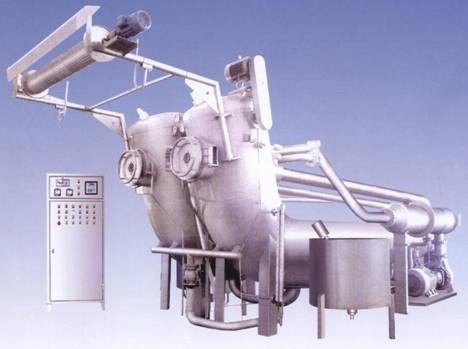

KD-1000 HTHP Double-Liquid-flow loose Dyeing Machine

Characters Of the Products:

KD1000 dyeing machine is new product produced successively. The machine has absorbed the outstanding design features of KD series dying machines .In it novel spraying system and fabric lifting and delivering system are used for greatly increasing fabric loading and speed as well as reducing bath ratio. In this way fabrics are ensured to be uniformly dyed and have a comfortable handling . The machine is surely desired equipment widely applied for dyeing cotton, cotton fiber, blended and man-made fabric.

Technical data:

Max: working temperature: 140℃

Max: working pressure: 0.38Mpa

Heating gradient: 25℃—100℃average5℃／min

                           100℃—130℃ average2.5℃／min

                           (at saturated steam pressure of 0.7Mpa)

Cooling gradient:130℃—100℃ average 3℃／min

                            100℃—85℃average 2℃／min

                           (at water pressure of 0.3Mpa, at 25℃)

Advantage

• High fabric speed

1.  More fabric turnover
2.  Fabric speed up to 380m／min
3.  More exchange between dye fabrice and liquid
4.  Mord even colorshade
5.  No crease mark of any kind

• Low liquor ratio 1﹕6—7

1.  Less discharge of effluent
2.  More bath turnover
3.  More even colorshade
4.  Saving on dyestuff ,chemical,water,steam and electricity

• Jumbo capacity

1.  Reduction of shade doafference from batch
2.  To batch less number of machines if requirer

• Quice return circulation system

1.  More bath turnover
2. Extensive exchsnge between fabric and dyingliquid
3.  More even color shade

• Excellent unfurl effect

1.  Fabric speeds open , No crease
2.  Mark of any king , Superb finished goods.

• Function intelligent rinsing system

1.  Realisation of no drop bath dyeing technique
2.  Without machine stooped Reduction of process tiom
3.  More cost effective
4.  Higher utilization
