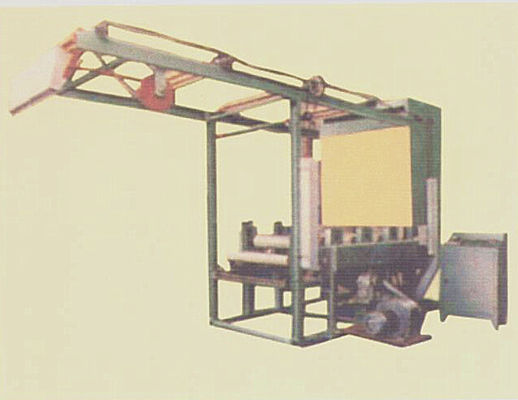

Automatic Vertical Cylinder Fabric Roller Printing Machine 1100 - 700mm

Automatic Vertical Cylinder Fabric Roller Printing Machine 1100 - 700mm​

Our factory produced KD series roller printer for more than 20 years. The user, who bought our printer, has good impression with our products. According to market demand, our engineer improved new type –horizontal type roller printer,some gear separating type roller printer.

Ⅰ. Application:

KD-910/1200/1600-1-4 type vertical type roller printer is characteristic products in our Chinese knitted printing & dyeing industry, it’s suitable for cotton chemical fiber,artificial fiber,blending knitted products and woven fabric. It can also design pattern to engrave according to client’s request, then single color or max. four colors printing, and achieve high quality printing efficiency with high fastness,brighter in color ,no need after-printing process. High capacity of continuous printing, about 50m/min,this solve the traditional problem: low capacity,bad quality,high cost,high labor intensity.

Machine features:

• KD-910/1200/1600-1-4 type horizontal type roller printer has five main features:  ① Occupancy area is small, ② easy to watch the pattern and check quality, ③ high thermal insulation and high scattered humidity, ④ pattern with high chromaticity in fabric, bright in color, ⑤, high capacity of continuous printing,45-60m/min.
•   KD-910/1200/1600-1-4 type gear separated roller printer, improved the drive mode based on the previous two printers, this type printer has special features: ① steady drive, no noise, ② convenient for changing the printing roller, ③ high accuracy of registration, ④ side-to-side adjustment, more convenient.

Ⅱ.   Structure and principle

1. This machine adopts frequency conversion to adjust the speed, high efficiency and power saving ensures step-less speed regulating under slow running, wide range of speed regulation, high correction rate, high control accuracy, stable performance. Printing roller is bevel gear drive, steady operation and low noise.
2. Oven adopts steam type electricity drying, temperature adjustable according to drying condition. We can supply automatic temperature control system (price will be changed).

Ⅲ, Main technical parameter

1. Printing width: below 1200mm,best printing width:1100-700mm
2. Printing speed:3-60m/min
3. Motor power: 2.2~7.5KW
4. Shape size: refer to drawing or manufactured according to customer’s request.
5. Oven power: 36~160KW(adjustable)
