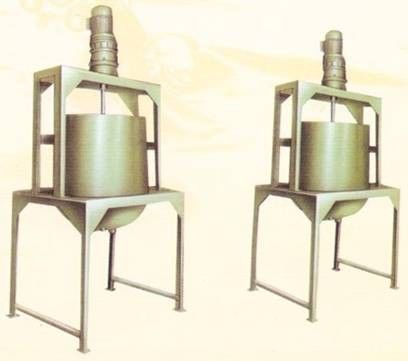

Vapor steamer Carpet Dyeing Machine Boiling the printing starch and finishing starch

KDΦ2900*8800mm vapor steamer

Vapor steamer Carpet Dyeing Machine Boiling the printing starch and finishing starch​

1. Application:

Boiling the printing starch and finishing starch etc.

2. Technical parameter

1. Model:KD-250

2. Working capacity:100L/Boiler

3. Stirring mode:Double-knot rotation

4. Paddle rotate speed:25rmp

5. Pour out mode:Manual valve opens for pouring the starch out

6. Starch boiler size:Dia. 800, Inner dia.780mm

7. Starch boiler construction:Steel plate shell, SS inner wall

8. Heating and cooling:Starch pan interlayer heating by steam, cooling by cooling water

9. Using steam pressure:0.1Mpa

10. overall dimensions (L*W*H):1400X1000X2800mm

11. Whole machine weight:Around 1000kg

Blanket Produce Process Flow:

warp knitting machine  → fur wool blanket latexing and setting machine  → pre-polishing machine →  printing machine (or use manual plate printing)  →  filtering machine  →  vapor steamer   →  washing machine   →  dehydrator   →  back to sizing machine to dry   →  raising machine   →  brushing machine   →  polishing machine   →  ironing and shearing combining machine   →  inspecting machine   →  cut and slicing   →  wrapping  →  packing to finish product
