Pneumatic sensitizing continuous Carpet Dyeing Machine custom for sensitizing

Pneumatic sensitizing continuous Carpet Dyeing Machine custom for sensitizing

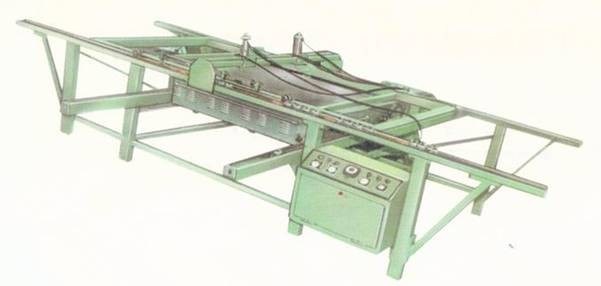

KD-250 Pneumatic sensitizing continuous capture machine

1. Application:

This machine is corollary equipment of flat screen printer, for sensitizing the screen plate pattern before printing process. According to customer’s requirement, can provide different types of air bag type sensitizing machine with high definition.

2. Technical parameter

1. Model:KD-250

2. Component part: Table frame, pressing plate, light box, gas circuit, electric etc.

3. Typography outside size: 2500X1400 and 1500X1120(screen frame)

4. Compressed air consumption:0.008m³/time

5. Shape size:4578X3242X1178

6. Can be customized according to user requirements

Blanket Produce Process Flow:

warp knitting machine  → fur wool blanket latexing and setting machine  → pre-polishing machine →  printing machine (or use manual plate printing)  →  filtering machine  →  vapor steamer   →  washing machine   →  dehydrator   →  back to sizing machine to dry   →  raising machine   →  brushing machine   →  polishing machine   →  ironing and shearing combining machine   →  inspecting machine   →  cut and slicing   →  wrapping  →  packing to finish product
