Normal Temperature Spray Hank Yarn Dyeing Machine Jetting Dyeing Automatic Control

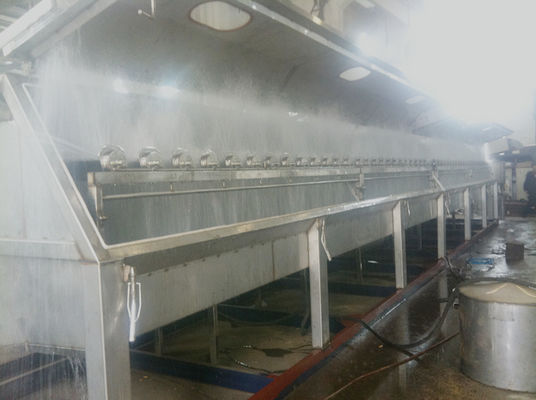

KDQ411Normal temperature spray automatic hank dyeing machine

Introduction:

They are widely used in dyeing,refining,bleaching, washing and after treatment of hank real silk, cotton made of silk, embroidered thread and blended fabrics.

Main technical parameters

• Nom. Capacity :5-7kg/(pipe).
• Specifications, carrier bar :   1~40(pipe),(Length) 980~1280mm.
• Suitable for length of hank:   500~810mm(20”~32”)
• Technological bath ratio:     1:9~1:15
• maximum working temperature:98℃
• Heating rate:     approximate 3~5 minutes
• Cooling rate:    approximate 2~4 minutes
• Heating mode: direct steam heating and indirect heat preservation
• Employ steam pressure:0.3Mpa
• Control mode:manual, semi-automatic or computer full-automatic

Specification :

                    1,positive and reverse running      7,in fall

2,flow regulator                             8, spray tube

3,cycle pump motor                      9,dyesyuff barrel

4,cycle pump                               10,door deadweight

5,to exchange heating                 11, open set

6,out fall                                       12, flow meter

Features

• Advanced Pump Design

 The key to success for dyeing machine is its pump. GFS series of spray dyeing machine has a reversible high performance mixing pump which uses our patented design has advantage of high floe and high efficiency, when it is used with patented designed spiral guide yare, the flow must be even more directional. It enhances greatly the penetrating power, lowers consumption and raises efficiency so that even dyeing can be obtained without speck and raising defect. The selected pump is famous in the world, since its mechanical sealing diameter is small and linear velocity is low so that it is durable and the operation rate of dyeing machine is greatly increased.

• Flow control. Improvable dyeing quality

 A special designed flow regulator can adjust flow according to the quantity, count and variety of the yarn, therefore, you can have a very good dyeing effect.

• Selected material, reasonable structure, customer the first

All wetted parts are made of 304, quality corrosion resistant stainless steel. It is durable. In order to decrease heat loss heating spiral coil and direct heating tubes are laid at the bottom of the machine.
