Rubber Blanket Sanforizer Textile Finishing Machines / stainless steel steam conditioning box

KD-220 Rubber Blanket Sanforizer/Open-width feeding→ stainless steel steam conditioning box

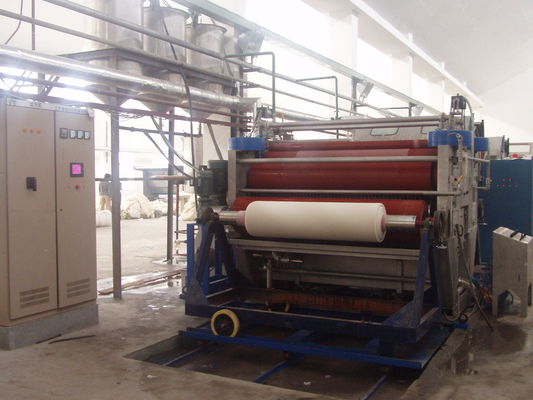

KD-220 Rubber Blanket Sanforizer

Application:

This machine is mainly used for after finishing process of cotton, blended fabric. As the fabric shrunk finish process and improve touch feeling, fabric have high dimensional stability.

Main feature:

  Absorb advanced technology and process from  Germany Monforts,rubber blanket from Canada.

  Feeding part

  Steam conditioning drying cylinder conditions, conditioning roller is ¢608mm;

  Preshrinking part

  45mm unitary steel plate wallboard;

  ¢616mm stainless steel press roller;

  Drying part

  ¢2000mm and ¢1000mm drying drum

  Rubber grinder roller of air pressure wringing and special process treatment, which can comparable with imported level.

   Control of electric device

   AC variable frequency circuit

    Automatic display the flexible ratio, control reduction ratio;

    Optional human-computer computer control.

  Main technical parameter:

Machine direction: left hand or right hand

Mechanical width: 2200mm

Designed mechanical speed: 10-100 m/min

Heat source: steam (steam pressure 0.5Mpa )

Transmission type: variable-frequency electric drive

Installed power: 26.5KW (not include grinding roller motor 11KW)

Preshrunk ratio: ≤16%

Shrinkage rate: ≤1%

Max. steam consumption: around 200kg/h
