Textile Shearing Machine for woolen rolls of chemical fiber warp knitted

Shearing Textile Finishing Machines for shearing woolen rolls of chemical fiber warp knitted

KD54 type shearing machine/ is mainly for shearing the woolen rolls of cotton, chemical fiber warp knitted, weft-knitted

KD54 type shearing machine

Fabric dyeing machine

1. Suitable for laundry, hostel, troop, hospital, hotel, blanching & dyeing factory, large & middle size enterprise and service field to wash various fabrics made of cotton, wool, linen and chemical fibre.

2. The machine adopts horizontal and drum-type structure, low noise, low shock.                     3. The cylinder and shell are in stainless steel,smooth surface,good appearance and long life.

4. There are safety lock on both inner drum and outer drum.
5. It is driven by triangle belt which is duable and moves smooth with little shock.

6. Its capacity is from 15kg to 400kg.

1. Character

GND-142 dyeing machine combined testing machine is universal equipment for laboratory printing and dyeing, suitable for technological tests of various kinds of natural fibres, synthetic fibres and other blended fabrics, e.g. coating, pad dyeing, padding chemical liquid, steaming, washing, tenter drying, etc.

2. Mainly Application

1) The continuous dyeing machine(with PLC) is especially used for dyeing  Textiel Lift Slings and Heavy Duty Belts with elongation.

2) Processes: Feed in  →dyeing padder→infrared  predrying → hold mangle→thermofixation →cool off→pull mangle →take off

3) Production capacity:2 pcs/time,0-25meter/min/pcs.

4) can dye both 350mm width sling webbings,heavy duty webbings, tie down straps, lash straps and so on.

5) with strong elongation function. for 300mm width webbing 1 meter go into dyeing machine, and 1.02meter come out after dyed for 50mm width webbing 1 meter go into dyeing machine and 1.12meter come out after dyed

Application:

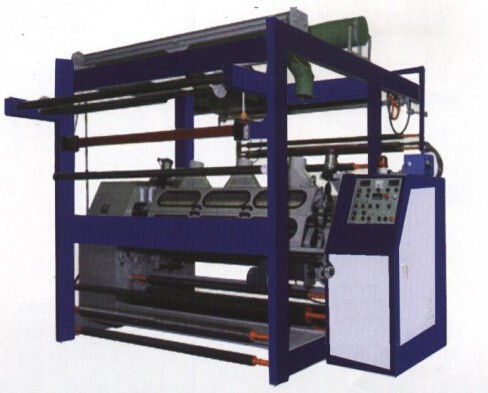

This machine is mainly for shearing the woolen rolls of cotton, chemical fiber warp knitted, weft-knitted fabric, it’s the one of the main equipments for weft knitting velour products; it’s suitable for shearig the Short-pile velour, making the nap more flush; include dust exhaust apparatus after shearing, machine runs smoothly, protect environment and save energy.

Main spec and technical parameter:


• Nominal width: 2500mm
•
• Efficient width: 2400mm
•
• Max. Speed: 18m/min (adjustable)
•
• Total power: 6.25 kw (dust collection motor not included)
•
• Pile height: 1-8mm
•
• Hobbing cutter rotation speed: 200-1250rpm
•
• Blade qty of hobbing cutter: 24 pcs (imported hobbing cutter and plane blade)
•
• Flat cutter size: LWH 2500*125*4mm
•
• Installed power: 8.25kw
•
• Shape size: LWH 4140*3680*2960mm
