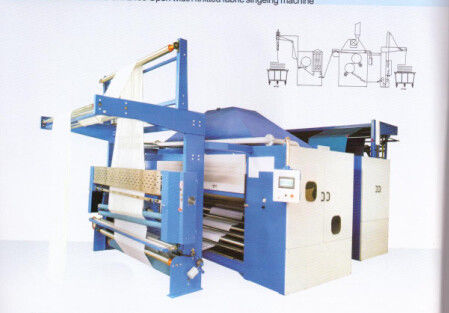

Durable Elastic open-width knitted fabric singeing machine KD-SM2400

KD-SM2400 elastic open-width knitted fabric singeing machine

Application:

With increasingly demanding quality knitted fabric, knitted fabric singeing process is very critical, especially in the recent market popular Austrian Lauderdale elastic Lycra fabric and other special cloth style is the effect obtained by singeing , while the "eclipse hair" craft cotton, if coupled singeing cloth will greatly reduce the "eclipse hair" costs and losses, while improving top fabric bursting strength.

After finishing knitted fabric, singed and mercerized from the original cylinder is a clear trend. Advantages compared to cylinder singeing, open width singeing obvious; singeing the fabric cleaner, more thorough, can change the appearance of the fabric, easy to produce singeing streaks, uneven singeing flaws.

This product absorbs the basis of similar products at home and abroad on the expertise of designing a reasonable adjustment to effectively prevent curling fabric, the fabric tension to a minimum, the use of simpler and more humane, more reasonable product structure, easy to use.

Technical characteristics :

1. Suitable for a wide range of range of varieties, cotton, cotton, TC, CVC, T / R and other knitted fabrics can be singeing.

2.energy efficient, fast recovery Chen, equipment singeing speeds of up to 100m / min, a day on average do more than 30 tons of cloth, singeing costs (with gas) minimum can be reached 100 RMB / ton cloth, with respect to imports of similar products to save as much as 20%, normal orders a month to recover the cost of equipment.

3. Burner nozzle is durable, singeing uniform. Crater using the latest knitting dedicated dual crater, crater nozzle clean processed on sides, even a powerful flame, no fire road, equipped with automatic gas pressure ratio adjustment function, automatic fire size through the LCD touch-screen control, to "fool" the operating function, greatly improving the operability of the device.

Technical parameters

1. Roller surface width: 2400mm

2. Working width: 2200mm

3. Burner length: 2400mm

4. Speed: 0~100m/min

5. Heat source: natural gas, coal gas

6. Energy consumption: gas consumption: 15KG/hr, natural gas consumption: 20m m³/HR, steam consumption: 80kg/HR

7. gas pressure: 0.7~1kg/c square meters, gas pressure: 1.0~1.5kg/c ㎡, the steam pressure: 4kg/c㎡

8. Breakpoint handling: burner to automatic steering

9. Fire-extinguishing cooling forms: steam fire-fighting, water cooling

10. Burn rating: above level 4

11. Total power: 13.5kW

12. Overall dimensions (l * w * h): 7800*4200*3300mm
